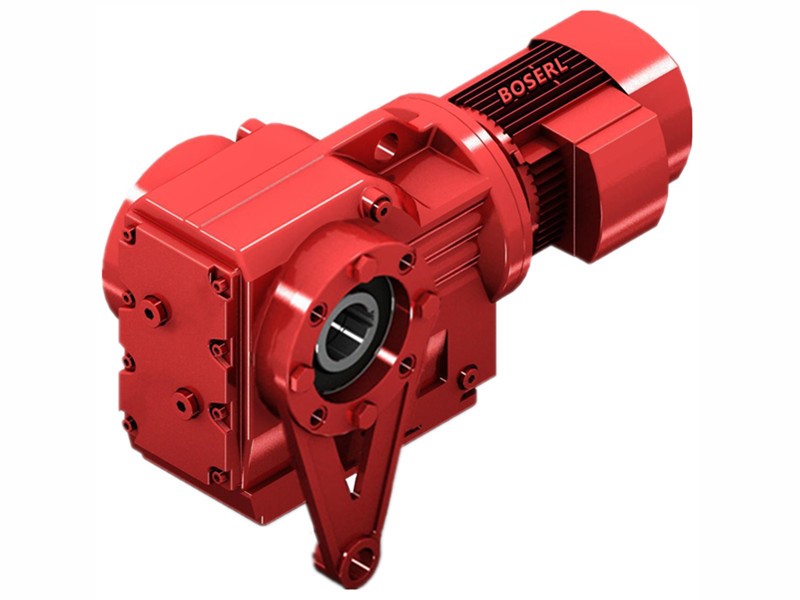

KA37/TDVE80S4詳細信息
KA37/TDVE80S4
關鍵詞：37KW電機能配多大直角中空軸減速箱_KA37/TDVE80S4_KA37/TDRE80S4
KA37/TDVE80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA37/TDVE80S4 | 44.46 | 0.75KW | 32rpm | 225N.m | 22kg | 4170N | 0.9 |
| KA37/TDVE80S4 | 37.97 | 0.75KW | 37rpm | 193N.m | 22kg | 4150N | 1.05 |
| KA37/TDVE80S4 | 35.57 | 0.75KW | 40rpm | 181N.m | 22kg | 4130N | 1.1 |
| KA37/TDVE80S4 | 29.96 | 0.75KW | 47rpm | 152N.m | 22kg | 4070N | 1.3 |
| KA37/TDVE80S4 | 28.83 | 0.75KW | 49rpm | 146N.m | 22kg | 4050N | 1.35 |
| KA37/TDVE80S4 | 24.99 | 0.75KW | 56rpm | 127N.m | 22kg | 3980N | 1.6 |
| KA37/TDVE80S4 | 23.36 | 0.75KW | 60rpm | 119N.m | 22kg | 3940N | 1.65 |
| KA37/TDVE80S4 | 20.19 | 0.75KW | 70rpm | 102N.m | 22kg | 3850N | 1.8 |
| KA37/TDVE80S4 | 17.15 | 0.75KW | 82rpm | 87N.m | 22kg | 3740N | 2.1 |
| KA37/TDVE80S4 | 15.31 | 0.75KW | 92rpm | 78N.m | 22kg | 3650N | 2.2 |
| KA37/TDVE80S4 | 13.08 | 0.75KW | 108rpm | 66N.m | 22kg | 3530N | 2.5 |
| KA37/TDVE80S4 | 12.14 | 0.75KW | 116rpm | 62N.m | 22kg | 3480N | 2.6 |
| KA37/TDVE80S4 | 10.49 | 0.75KW | 134rpm | 53N.m | 22kg | 3360N | 3 |
| KA37/TDVE80S4 | 8.91 | 0.75KW | 158rpm | 45N.m | 22kg | 3230N | 3.5 |
| KA37/TDVE80S4 | 7.96 | 0.75KW | 177rpm | 40N.m | 22kg | 3140N | 3.8 |
| KA37/TDVE80S4 | 6.8 | 0.75KW | 207rpm | 34N.m | 22kg | 3010N | 4.4 |
| KA37/TDVE80S4 | 6.37 | 0.75KW | 221rpm | 32N.m | 22kg | 2960N | 4.5 |
| KA37/TDVE80S4 | 5.36 | 0.75KW | 263rpm | 27N.m | 22kg | 2830N | 5.2 |
| KA37/TDVE80S4 | 3.98 | 0.75KW | 354rpm | 20N.m | 22kg | 2600N | 6.2 |
KA37/TDRE80S4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| KA37/TDRE80S4 | 44.46 | 0.75KW | 32rpm | 225N.m | 22kg | 4170N | 0.9 |
| KA37/TDRE80S4 | 37.97 | 0.75KW | 37rpm | 193N.m | 22kg | 4150N | 1.05 |
| KA37/TDRE80S4 | 35.57 | 0.75KW | 40rpm | 181N.m | 22kg | 4130N | 1.1 |
| KA37/TDRE80S4 | 29.96 | 0.75KW | 47rpm | 152N.m | 22kg | 4070N | 1.3 |
| KA37/TDRE80S4 | 28.83 | 0.75KW | 49rpm | 146N.m | 22kg | 4050N | 1.35 |
| KA37/TDRE80S4 | 24.99 | 0.75KW | 56rpm | 127N.m | 22kg | 3980N | 1.6 |
| KA37/TDRE80S4 | 23.36 | 0.75KW | 60rpm | 119N.m | 22kg | 3940N | 1.65 |
| KA37/TDRE80S4 | 20.19 | 0.75KW | 70rpm | 102N.m | 22kg | 3850N | 1.8 |
| KA37/TDRE80S4 | 17.15 | 0.75KW | 82rpm | 87N.m | 22kg | 3740N | 2.1 |
| KA37/TDRE80S4 | 15.31 | 0.75KW | 92rpm | 78N.m | 22kg | 3650N | 2.2 |
| KA37/TDRE80S4 | 13.08 | 0.75KW | 108rpm | 66N.m | 22kg | 3530N | 2.5 |
| KA37/TDRE80S4 | 12.14 | 0.75KW | 116rpm | 62N.m | 22kg | 3480N | 2.6 |
| KA37/TDRE80S4 | 10.49 | 0.75KW | 134rpm | 53N.m | 22kg | 3360N | 3 |
| KA37/TDRE80S4 | 8.91 | 0.75KW | 158rpm | 45N.m | 22kg | 3230N | 3.5 |
| KA37/TDRE80S4 | 7.96 | 0.75KW | 177rpm | 40N.m | 22kg | 3140N | 3.8 |
| KA37/TDRE80S4 | 6.8 | 0.75KW | 207rpm | 34N.m | 22kg | 3010N | 4.4 |
| KA37/TDRE80S4 | 6.37 | 0.75KW | 221rpm | 32N.m | 22kg | 2960N | 4.5 |
| KA37/TDRE80S4 | 5.36 | 0.75KW | 263rpm | 27N.m | 22kg | 2830N | 5.2 |
| KA37/TDRE80S4 | 3.98 | 0.75KW | 354rpm | 20N.m | 22kg | 2600N | 6.2 |
KA37/TDVE80S4減速機類型：
K..DR..底腳安裝斜齒輪—傘齒輪減速電機
KA..B DR..底腳空心軸安裝斜齒輪—傘齒輪減速電機
KV..B DR..底腳花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..B DR..底腳空心軸鎖緊盤安裝斜齒輪—傘齒輪減速機
KF..DR..B5法蘭安裝斜齒輪—傘齒輪減速電機
KAF..DR..B5法蘭空心軸安裝斜齒輪—傘齒輪減速電機
KVF..DR..B5法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHF..DR..B5法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA..DR..空心軸斜齒輪─傘齒輪減速電機
KV..DR..花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KH..DR..空心軸鎖緊盤斜齒輪─傘齒輪減速電機
KT..DR..空心軸安裝斜齒輪—傘齒輪減速電機
KAZ..DR..B14法蘭空心軸安裝斜齒輪─傘齒輪減速電機
KVZ..DR..B14法蘭花鍵空心軸安裝斜齒輪—傘齒輪減速電機
KHZ..DR..B14法蘭空心軸鎖緊盤安裝斜齒輪—傘齒輪減速電機
KA37/TDVE80S4減速機馬達安裝尺寸圖紙
KA37/TDVE80S4減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
雙孔輸出減速機應用案例展示：
關鍵詞:KA系列減速機與電機_雙孔輸出減速電機一套_雙孔輸出減速機電機_雙孔輸出電機減速機_雙速電動機減速機_通孔減速機_雙速電機減速機生產廠家
KA系列減速機型號：KA37減速機,KA47減速機,KA57減速機,KA67減速機,KA77減速機,KA87減速機,KA97減速機,KA107減速機,KA127減速機,KA157減速機,KA167減速機,KA187減速機
KA系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-200KW之間
