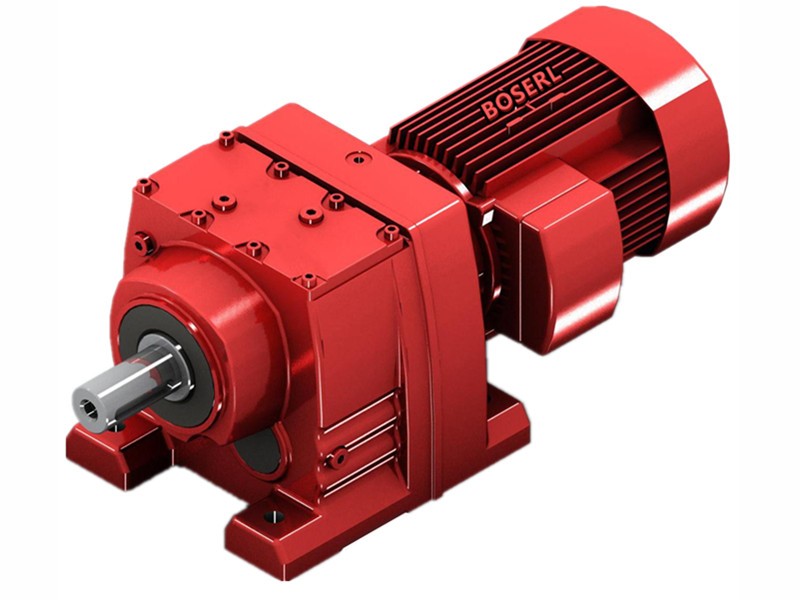

R27DM80MK4詳細信息
R27DM80MK4
訂購熱線：13360667204
關鍵詞：0.55千瓦電機帶減速機_R27DM80MK4_R27DM80N4_0.55千瓦電機帶減速器_減速機帶電機0.55千瓦
R27DM80MK4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R27DM80MK4 | 39.25 | 0.55KW | 35.0rpm | 149N.m | 20.5kg | 3270N | 0.85 |
| R27DM80MK4 | 36.79 | 0.55KW | 38.0rpm | 140N.m | 20.5kg | 3230N | 0.95 |
| R27DM80MK4 | 32.47 | 0.55KW | 42.0rpm | 124N.m | 20.5kg | 3150N | 1.05 |
| R27DM80MK4 | 28.78 | 0.55KW | 48.0rpm | 110N.m | 20.5kg | 3070N | 1.20 |
| R27DM80MK4 | 24.47 | 0.55KW | 56.0rpm | 93N.m | 20.5kg | 2960N | 1.40 |
| R27DM80MK4 | 22.32 | 0.55KW | 62.0rpm | 85N.m | 20.5kg | 2900N | 1.55 |
| R27DM80MK4 | 19.35 | 0.55KW | 71.0rpm | 74N.m | 20.5kg | 2800N | 1.75 |
| R27DM80MK4 | 18.08 | 0.55KW | 76.0rpm | 69N.m | 20.5kg | 2750N | 1.90 |
| R27DM80MK4 | 15.63 | 0.55KW | 88.0rpm | 60N.m | 20.5kg | 2650N | 2.20 |
| R27DM80MK4 | 13.28 | 0.55KW | 104rpm | 50N.m | 20.5kg | 2540N | 2.60 |
| R27DM80MK4 | 11.86 | 0.55KW | 116rpm | 45N.m | 20.5kg | 2460N | 2.90 |
| R27DM80MK4 | 10.13 | 0.55KW | 136rpm | 38N.m | 20.5kg | 2360N | 3.20 |
| R27DM80MK4 | 9.41 | 0.55KW | 147rpm | 36N.m | 20.5kg | 2280N | 3.40 |
| R27DM80MK4 | 8.16 | 0.55KW | 169rpm | 31N.m | 20.5kg | 2190N | 3.70 |
| R27DM80MK4 | 7.63 | 0.55KW | 181rpm | 29N.m | 20.5kg | 2150N | 3.90 |
| R27DM80MK4 | 6.59 | 0.55KW | 209rpm | 25N.m | 20.5kg | 2070N | 4.20 |
| R27DM80MK4 | 5.60 | 0.55KW | 246rpm | 21N.m | 20.5kg | 1970N | 4.60 |
| R27DM80MK4 | 5.00 | 0.55KW | 276rpm | 19N.m | 20.5kg | 1910N | 5.00 |
| R27DM80MK4 | 4.27 | 0.55KW | 323rpm | 16N.m | 20.5kg | 1820N | 5.30 |
| R27DM80MK4 | 4.00 | 0.55KW | 345rpm | 15N.m | 20.5kg | 1780N | 5.60 |
| R27DM80MK4 | 3.37 | 0.55KW | 410rpm | 13N.m | 20.5kg | 1690N | 6.20 |
R27DM80N4減速機電機參數：
| 型號 | 減速比 | 功率 | 轉數 | 扭矩 | 重量 | 力矩 | 安全系數 |
| R27DM80N4 | 28.78 | 0.75KW | 50.0rpm | 144N.m | 21.5kg | 2860N | 0.90 |
| R27DM80N4 | 24.47 | 0.75KW | 59.0rpm | 122N.m | 21.5kg | 2780N | 1.05 |
| R27DM80N4 | 22.32 | 0.75KW | 64.0rpm | 111N.m | 21.5kg | 2730N | 1.15 |
| R27DM80N4 | 19.35 | 0.75KW | 74.0rpm | 97N.m | 21.5kg | 2650N | 1.35 |
| R27DM80N4 | 18.08 | 0.75KW | 79.0rpm | 90N.m | 21.5kg | 2610N | 1.45 |
| R27DM80N4 | 15.63 | 0.75KW | 92.0rpm | 78N.m | 21.5kg | 2520N | 1.65 |
| R27DM80N4 | 13.28 | 0.75KW | 108rpm | 66N.m | 21.5kg | 2430N | 1.95 |
| R27DM80N4 | 11.86 | 0.75KW | 121rpm | 59N.m | 21.5kg | 2360N | 2.20 |
| R27DM80N4 | 10.13 | 0.75KW | 142rpm | 50N.m | 21.5kg | 2270N | 2.40 |
| R27DM80N4 | 9.41 | 0.75KW | 152rpm | 47N.m | 21.5kg | 2190N | 2.60 |
| R27DM80N4 | 8.16 | 0.75KW | 176rpm | 41N.m | 21.5kg | 2110N | 2.80 |
| R27DM80N4 | 7.63 | 0.75KW | 188rpm | 38N.m | 21.5kg | 2070N | 2.90 |
| R27DM80N4 | 6.59 | 0.75KW | 218rpm | 33N.m | 21.5kg | 1990N | 3.20 |
| R27DM80N4 | 5.60 | 0.75KW | 256rpm | 28N.m | 21.5kg | 1900N | 3.60 |
| R27DM80N4 | 5.00 | 0.75KW | 287rpm | 25N.m | 21.5kg | 1850N | 3.80 |

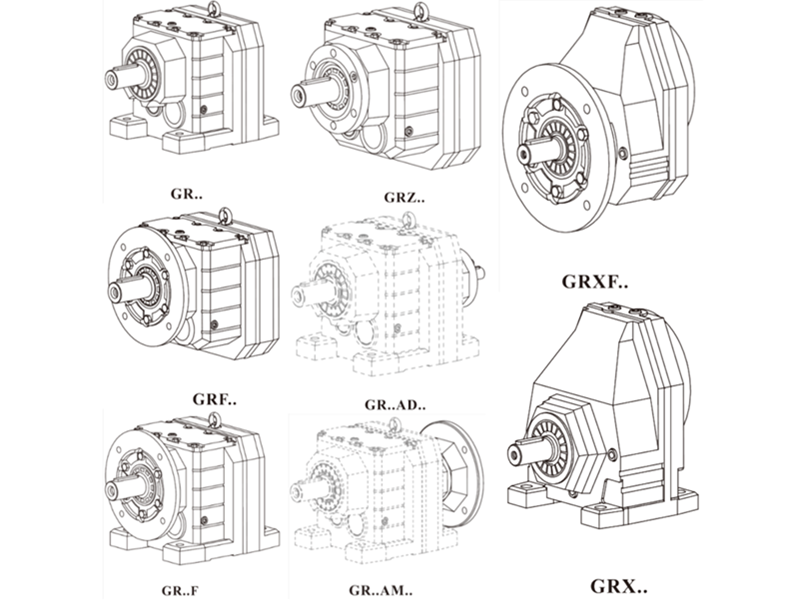

R27DM80MK4電機減速機類型：
RX..DR..單級底腳安裝斜齒輪減速電機

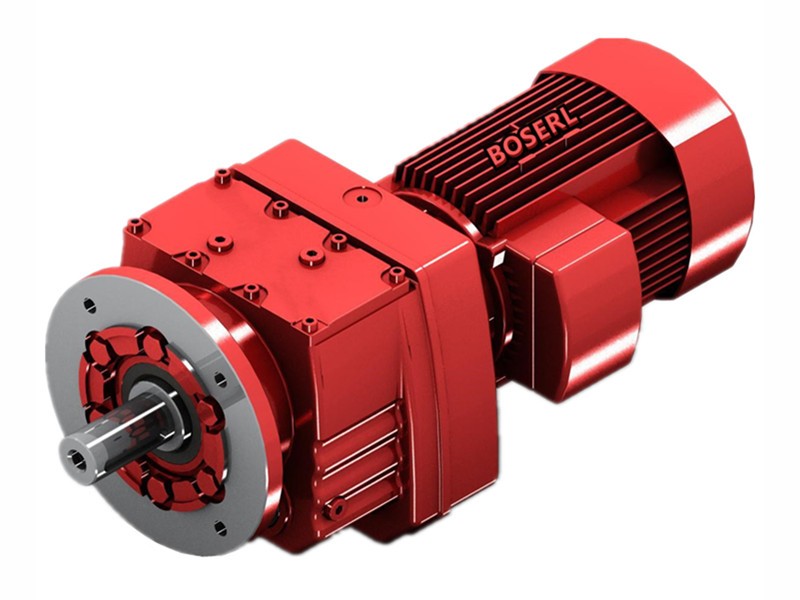

RXF..DR..單級B5法蘭安裝斜齒輪減速機電機
R..DR..底腳安裝斜齒輪減速電機
R..F DR..底腳、B5法蘭安裝斜齒輪減速電機
RF..DR..B5法蘭安裝斜齒輪減速電機
RZ..DR..B14法蘭安裝斜齒輪減速電機

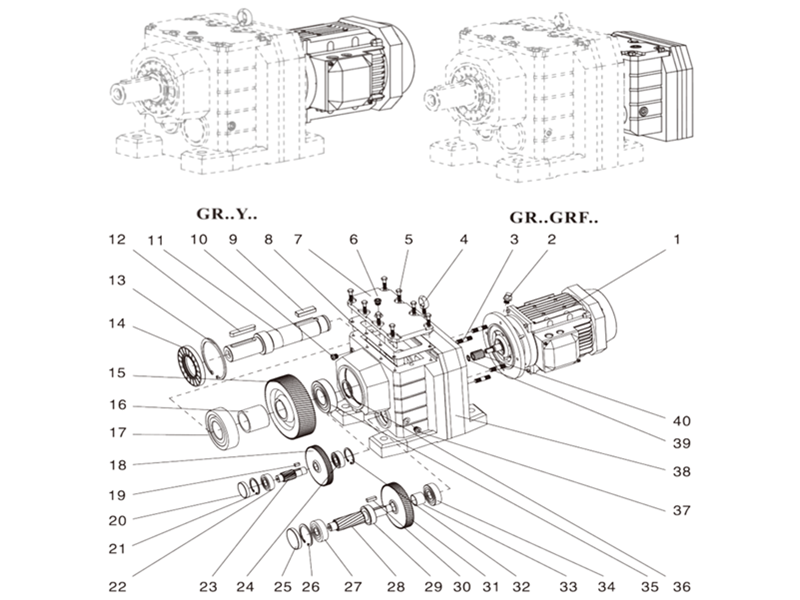

R27DM80MK4電機減速機安裝尺寸圖紙
R27DM80MK4電機減速機生產工廠展示：看廠請?zhí)崆叭祛A(yù)約
R系列減速機應用案例展示：
關鍵詞:R系列減速機與電機_臥式減速機_臥式齒輪減速電機一套_臥式齒輪減速機_R系列減速機生產廠家_臥式減速機生產廠家_臥式齒輪減速機生產廠家
R系列減速機型號：R17減速機,R27減速機,R37減速機,R47減速機,R57減速機,R67減速機,R77減速機,R87減速機,R97減速機,R107減速機,R137減速機,R147減速機,R167減速機
R系列減速機可配變頻電機，剎車電機，防爆電機，伺服電機，交流電機，直流電機，三相電機，單相電機 0.12KW-132KW之間
如需工程師幫選型，請加微信13827261050，留言告知工程師參數要求
標簽: 0.55千瓦電機帶減速機 R27DM80MK4 R27DM80N4 0.55千瓦電機帶減速器 減速機帶電機0.55千瓦
